Introduction

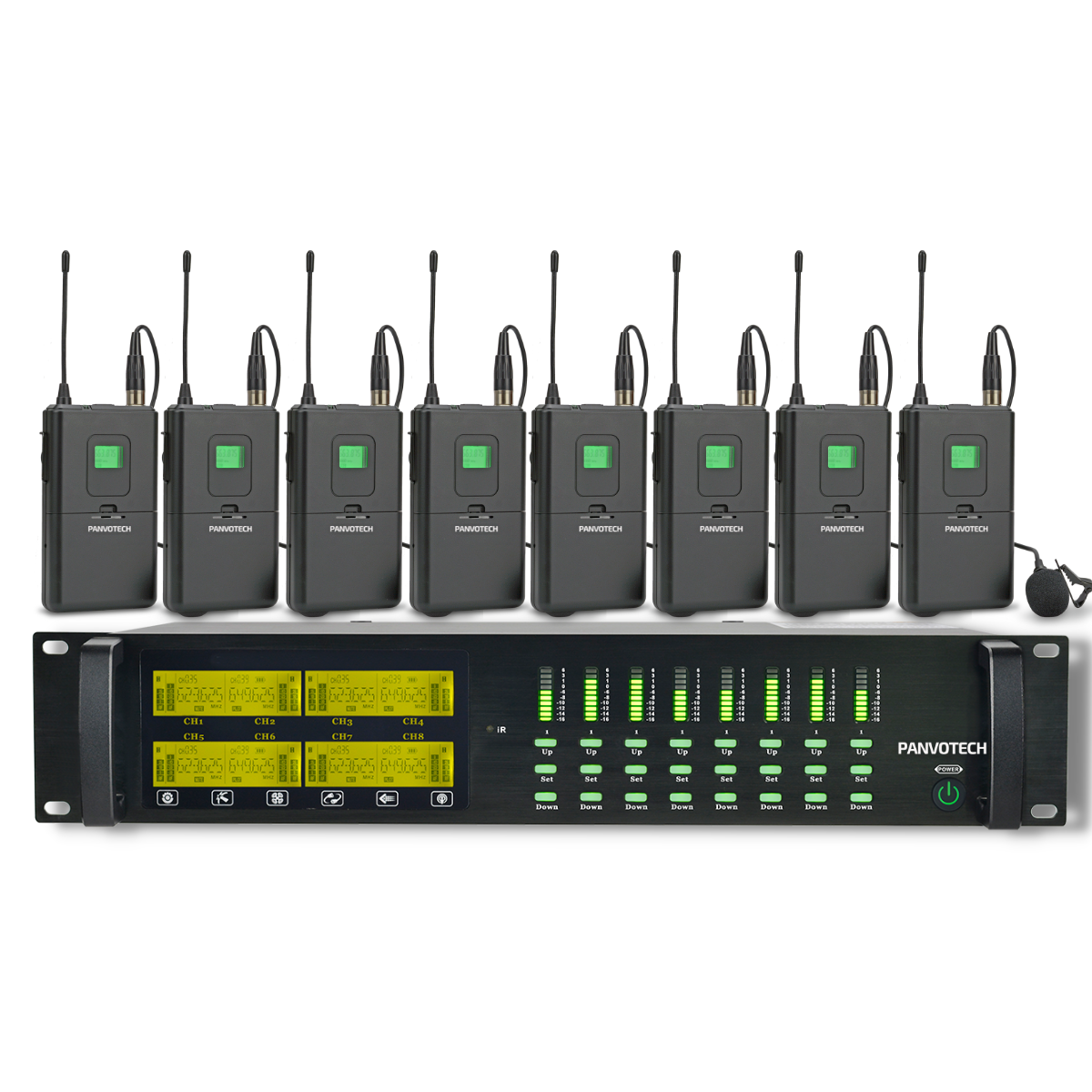

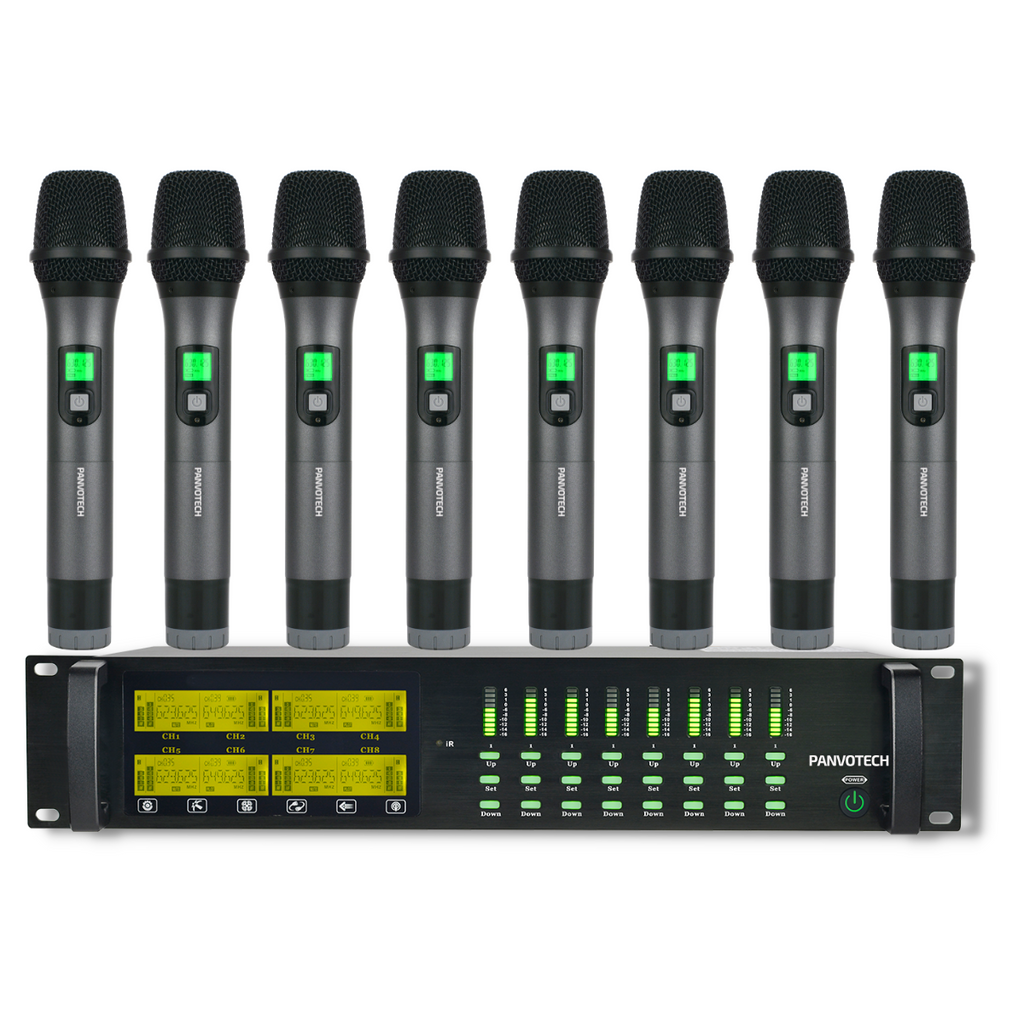

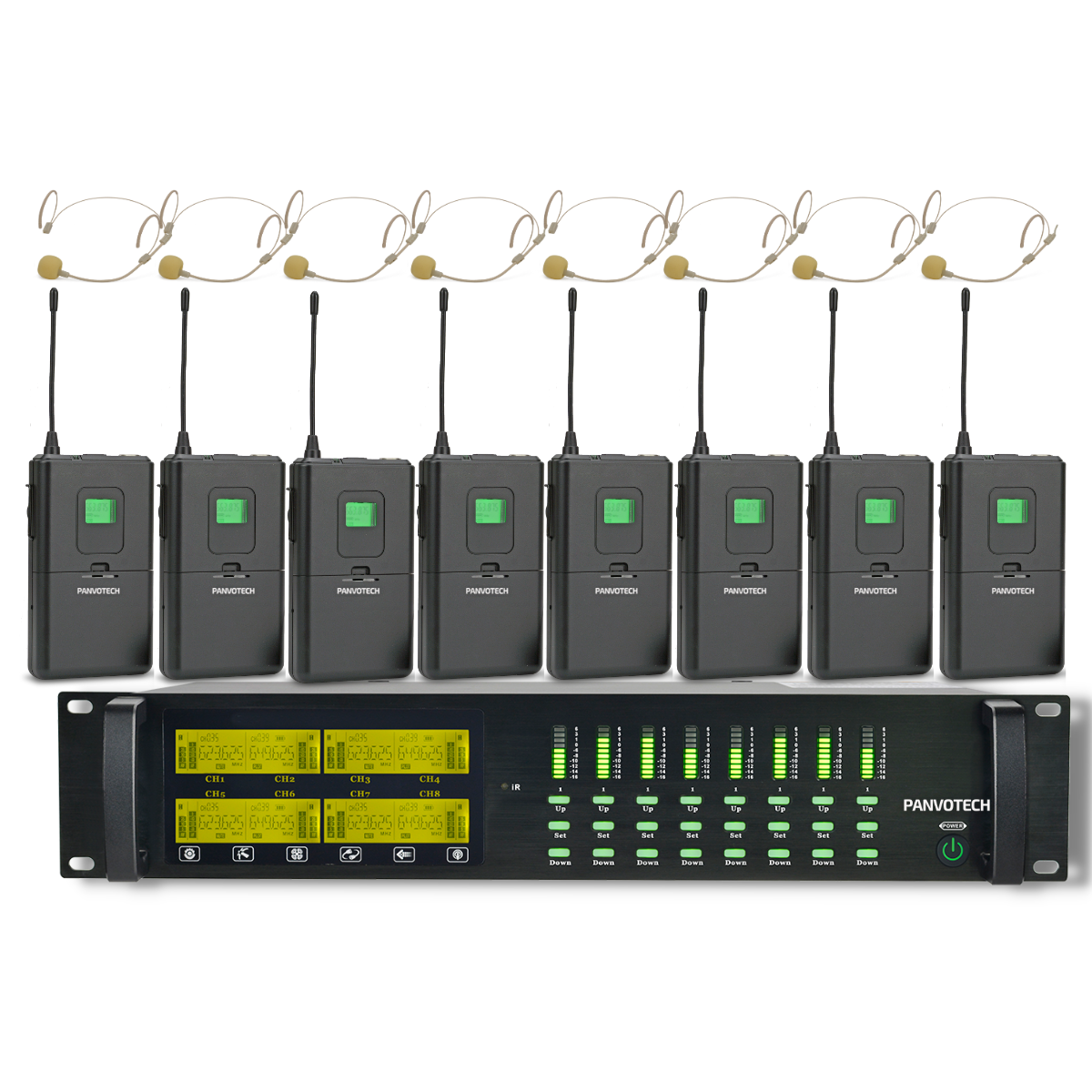

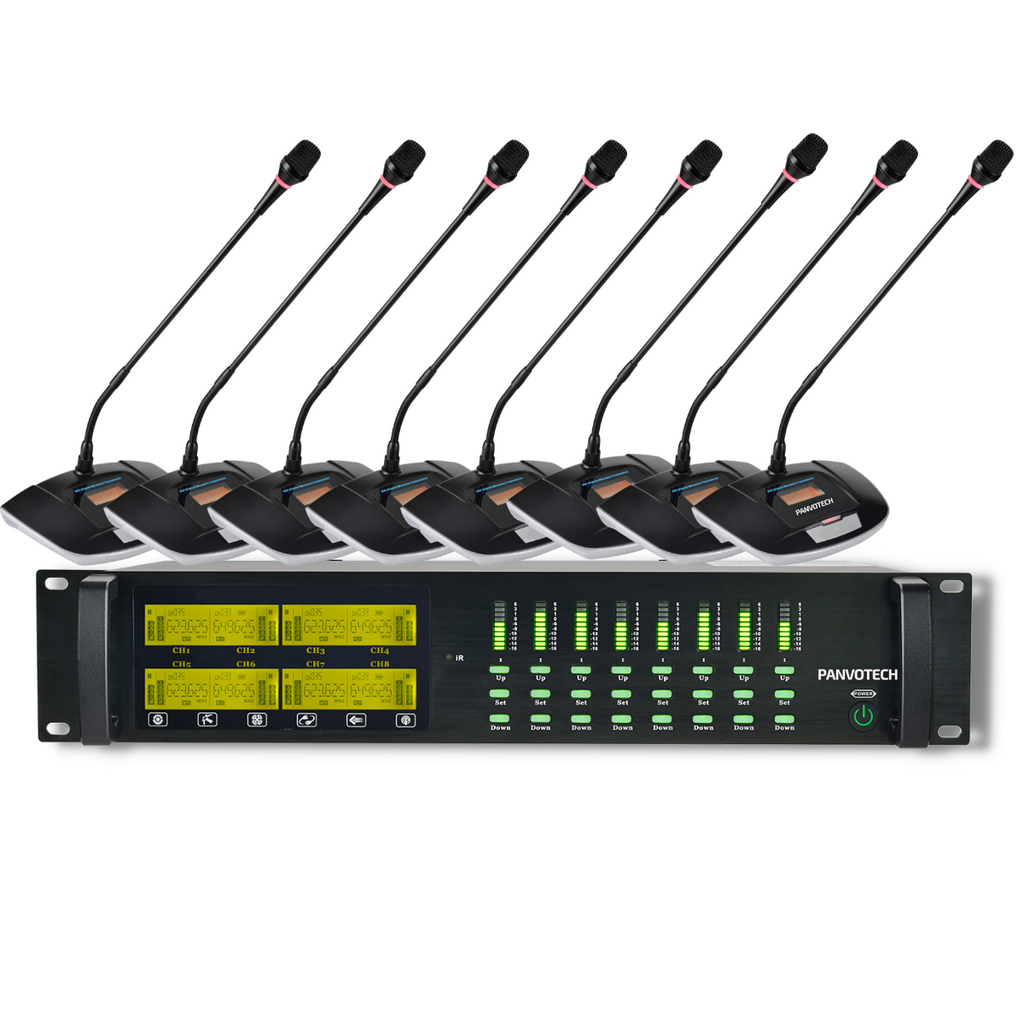

The PU-8002 wireless microphone system delivers 8 transmitters with multi selectable frequencies. 2U rack unit design receiver case with dynamic gain level lights, independence volume control, and carrying handle make it a perfect choice for church, theatre, stage, etc. Quality sound with high performance gives you the confidence you shall have.
Key Features
- UHF band wireless microphone system
- Total 200 (50*8) selectable frequencies
- IR frequency sync automatically for easy setup
- 2U rack design metal receiver case with carrying handle
- Dynamic LED indicator for each channel

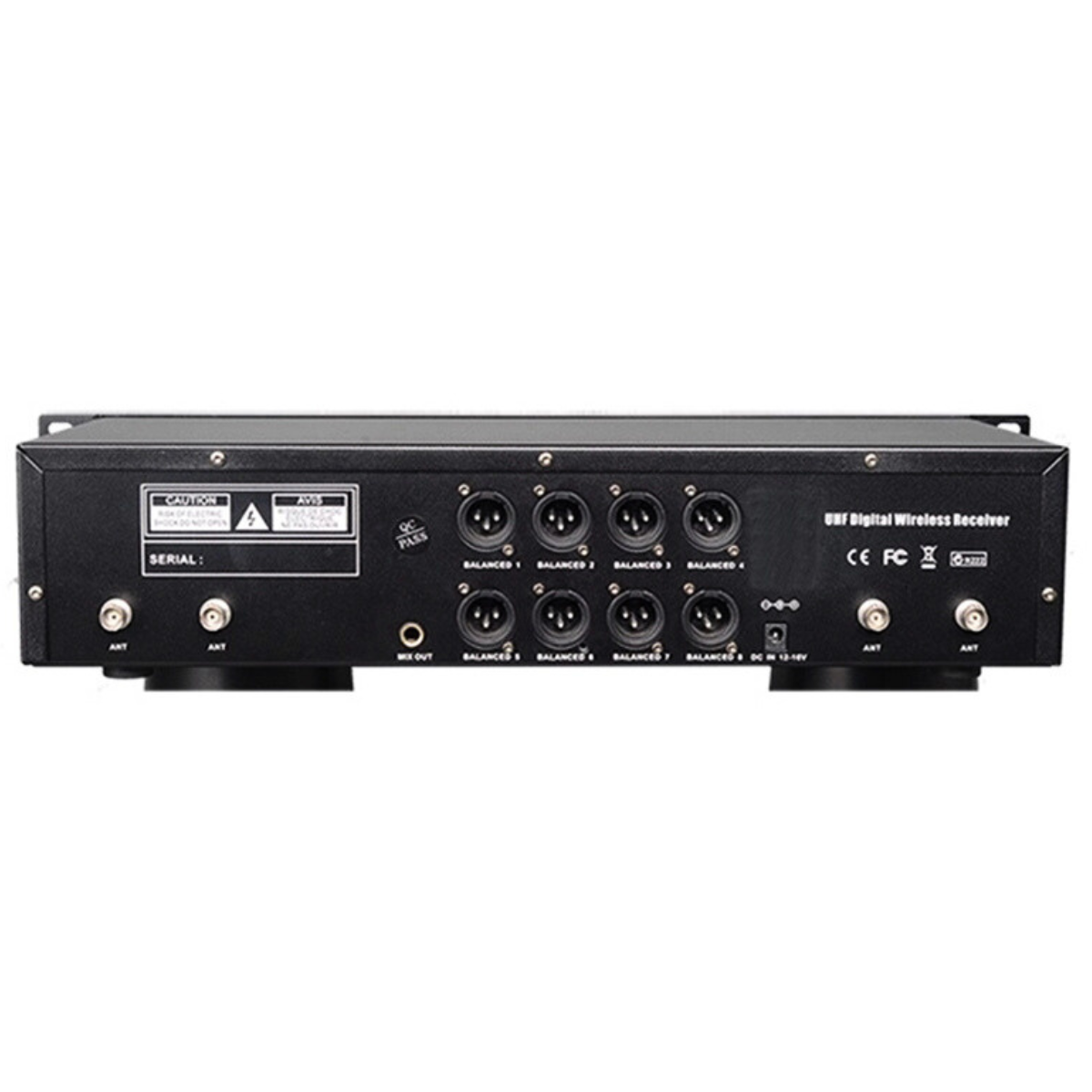

- 8 balance +1 unbalance output on rear panel of receiver
- Independent volume for each channel
- Best for stage, church, school, theatre, meeting, etc.
Specifications
Receiver
|
Frequency range |
UHF 740-790MHz |
|
Preset channel |
200 selectable (25 CHs in each channel) |
|
Oscillation mode |
PLL (Phase locked loop) |
|
Stability |
± 10m |
|
Frequency Response |
-95 ~-71dBm |
|
Distortion |
≤ 0.5% |
|
Frequency response |
40 ~ 18000 Hz |
|
Distortion |
≤ 0.5% |
|
S/N ratio |
≥ 108dB |
|
audio output |
800mv |
|
Power supply |
DC12V |
|
Power consumption |
≤14W |
|
Output |
8 balanced &am; 1 unbalanced |
Transmitter
|
Frequency range |
740 -790MHz |
|
Preset channel |
200 selectable (25 CHs in each channel) |
|
Oscillation mode |
PLL (Phase locked loop) |
|
RF power |
10 ~ 30mW |
|
Distortion |
≤ 0.5% |
|
Battery |
2*AA |
|
Working time |
Over 8 hours |
